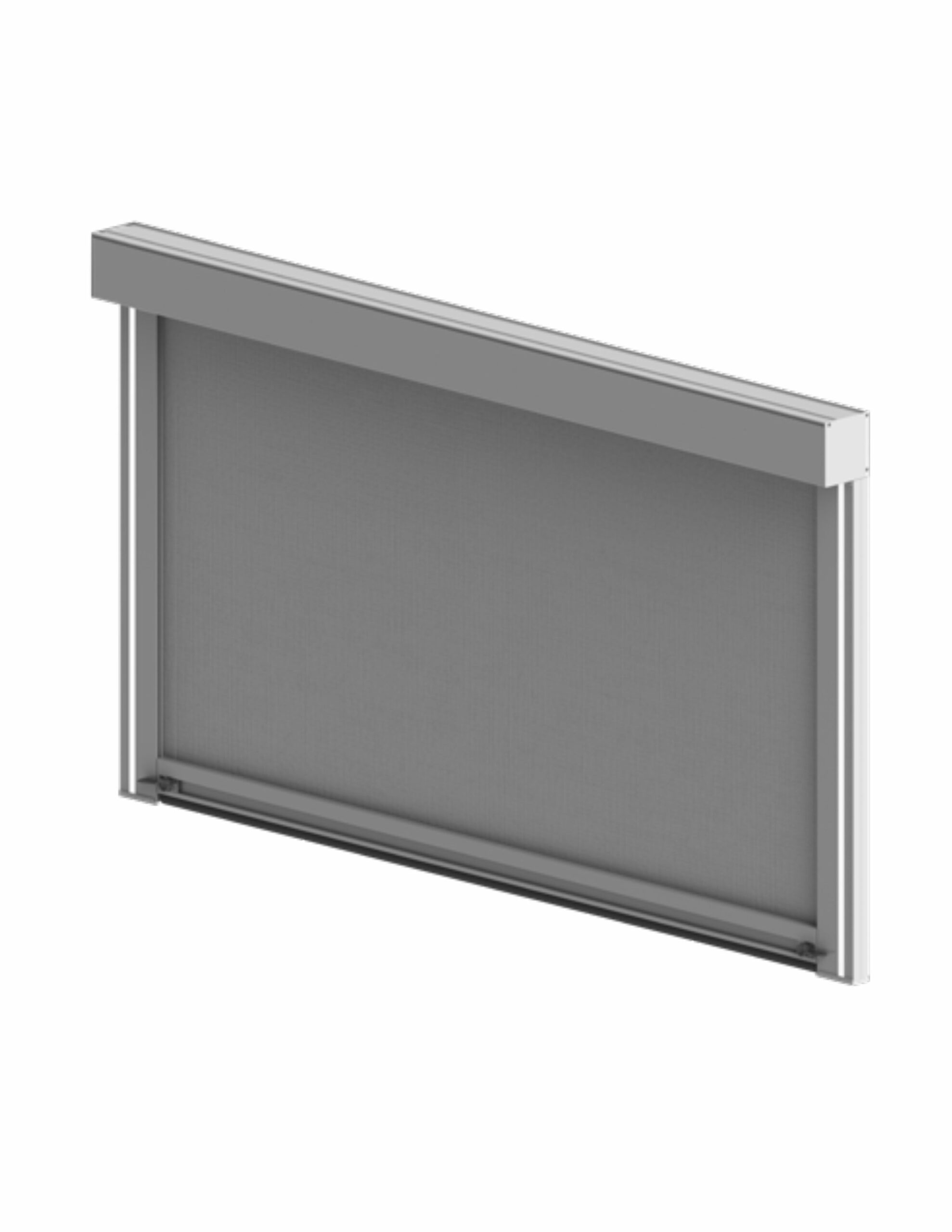

Vertical with Lor guides
Vertical awning with box and advanced guide with internal rod.
The Vertical with Lor Guides is a vertical awning system with a box, specially designed for enclosing pergolas and outdoor spaces where an elegant, secure, and wind-resistant solution is required. Its aluminum guide with an internal rod ensures firm fabric tension without the need for additional reinforcement profiles.
Key Features:
-
Square box of 139 x 119 mm.
-
Aluminum guide with internal rod: Holds the fabric inside the guide, preventing it from coming out without the need for reinforcement profiles.
-
Guide installation options:
-
Front-mounted
-
Between walls
-
-
Safety locks included in the load bar profile.
-
Drop: Refers to the total height covered by the system.
-
Without valance (optional on request, invoiced separately).
-
Optional integration of LED lighting within the guides.
-
Ideal for pergola enclosures, offering a clean and modern aesthetic.
Wind Resistance:
-
CLASS 3 rating according to EN 13561.
-
Maximum stability and resistance under demanding wind conditions.
Additional Technical Details:
-
This model does not require a reinforcement profile, as the internal rod system prevents fabric displacement or escape from the guides, even in windy conditions.
-
In awnings with transparent windows, a full perimeter frame is always required to ensure proper function and aesthetic finish.
Important: TRANSPARENT PVC and TRANSPARENT PVC WITH MESH lack internal weave, which may result in significant contraction or expansion depending on ambient temperature.
-
Their use is recommended only as part of an integrated window, preferably combined with acrylic fabric.
-
Even under such conditions, wrinkles or rolling defects may occur, so application should be carefully evaluated.
