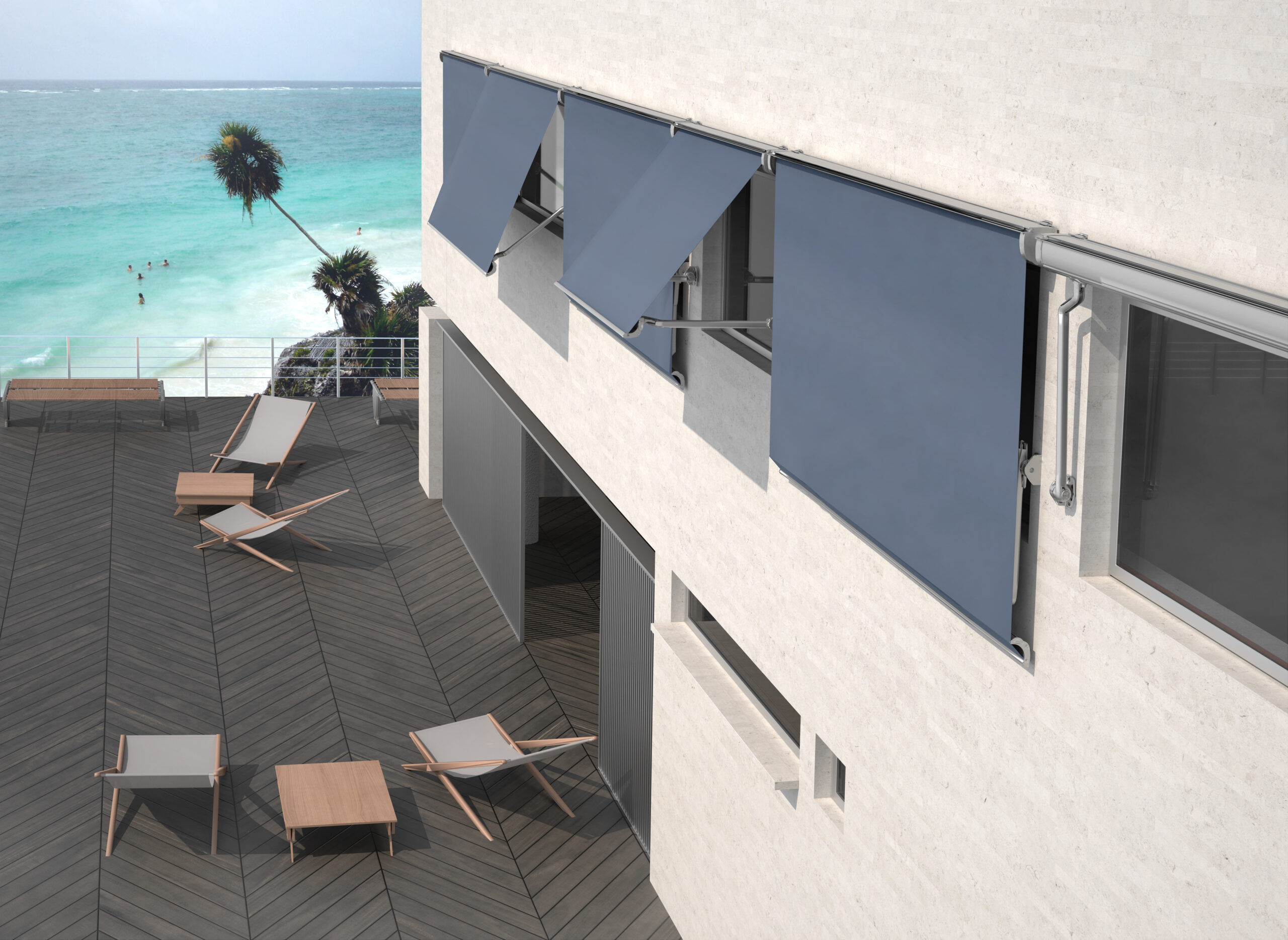

AVIA STRAIGHT ARM AWNING
Versatility and durability for windows, façades, and balconies
This model is specially designed for window installation, but its versatility makes it equally suitable for façades, patios, or balconies. Its folding arm system, with or without tension, allows for direct projection outward, maintaining airflow while maximizing shade.

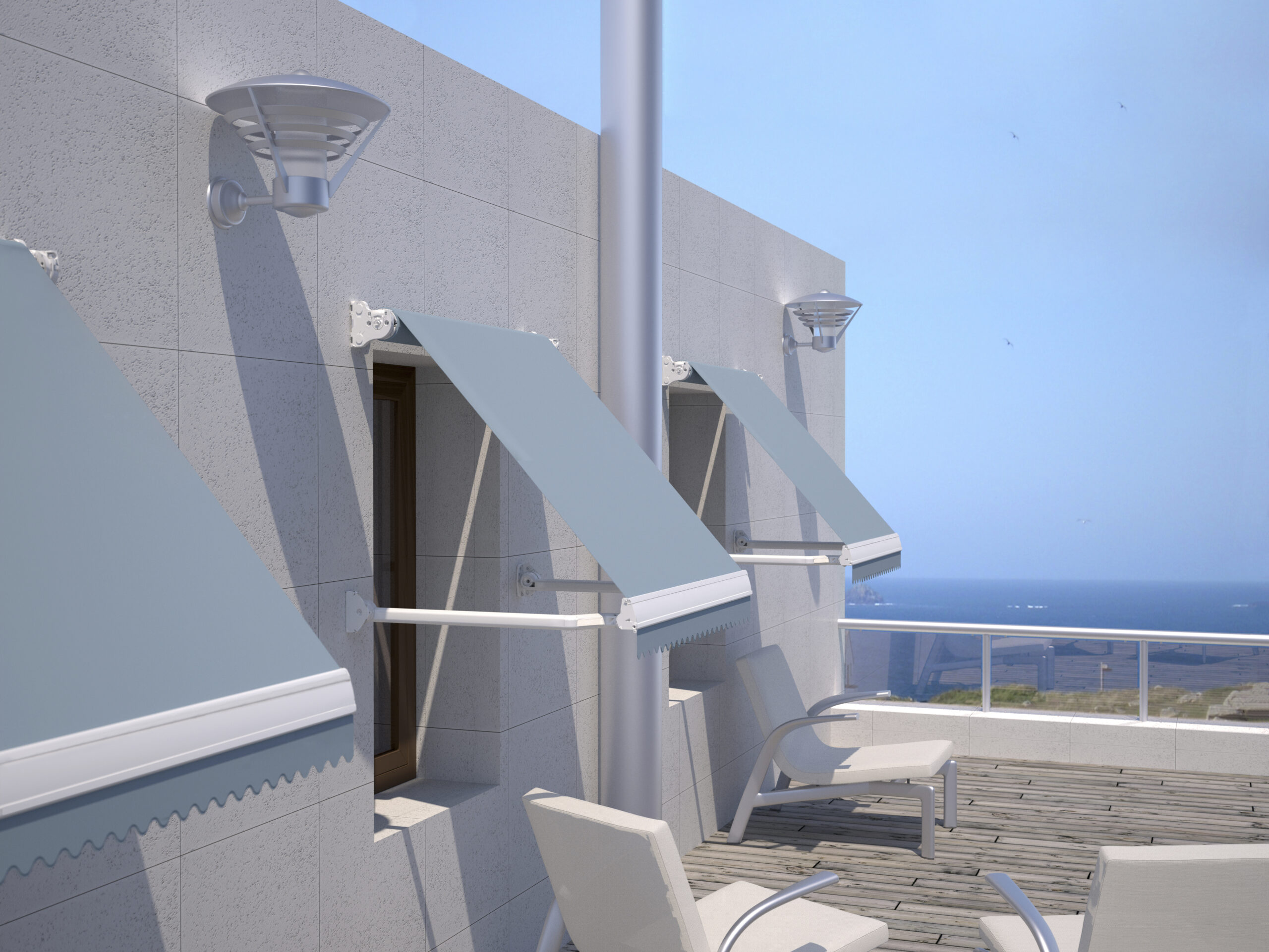

Types of Arm:
Arm with tension or semi-tension:
Increases the awning’s stability against the wind, ideal for exposed areas.
Cassette or semi-cassette (optional):
-
Protects the fabric when retracted, prolonging its lifespan and keeping it in better condition.
-
The cassette awning only allows front or ceiling installation.
-
For between-wall installation, up to 3000 mm width is allowed, with a side bracket (billed separately).
In this case, 12 mm + the installation screw must be deducted.
Installation Methods:
| Awning Type | Front Installation | Ceiling Installation | Between Walls |
|---|---|---|---|
| Punto Recto without cassette | ✅ Yes | ✅ Yes | ✅ Yes |
| Punto Recto with cassette | ✅ Yes | ✅ Yes | ⚠️ Max. 3000 mm with side bracket |
Technical Dimensions and Components
-

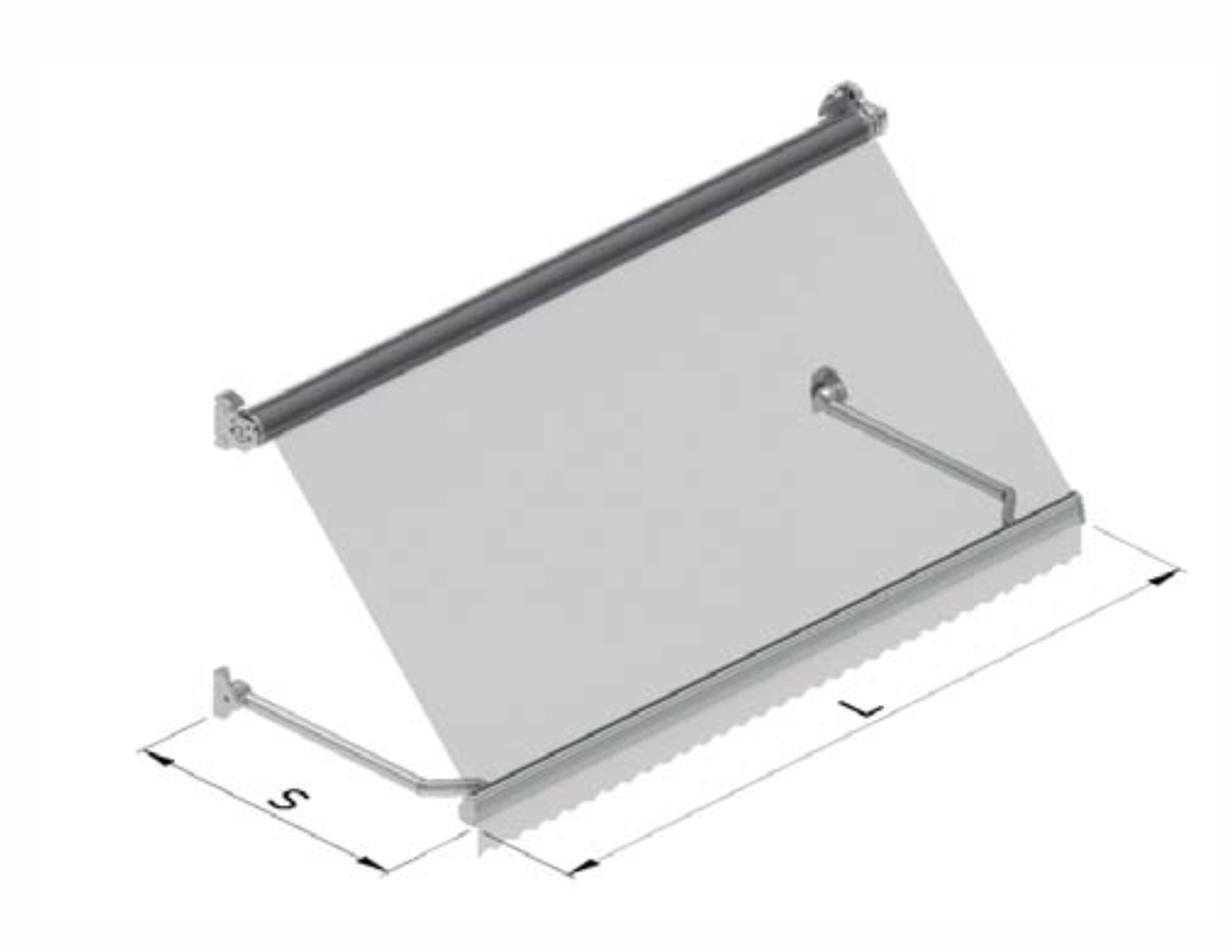

Projection = Arm length (matches the awning projection)
-
Standard fabric cut: Allows an arm inclination of approximately 120°.
-
Double drop (optional): Allows opening up to a vertical position.
-
Roller tube:
-
Ø 70 mm up to 5000 mm width.
-
Ø 78 mm for larger sizes (compatible with future motorization).
-
-
Load profile:
-
Ø 65 mm up to 4000 mm width.
-
Ø 75 mm for larger sizes.
-

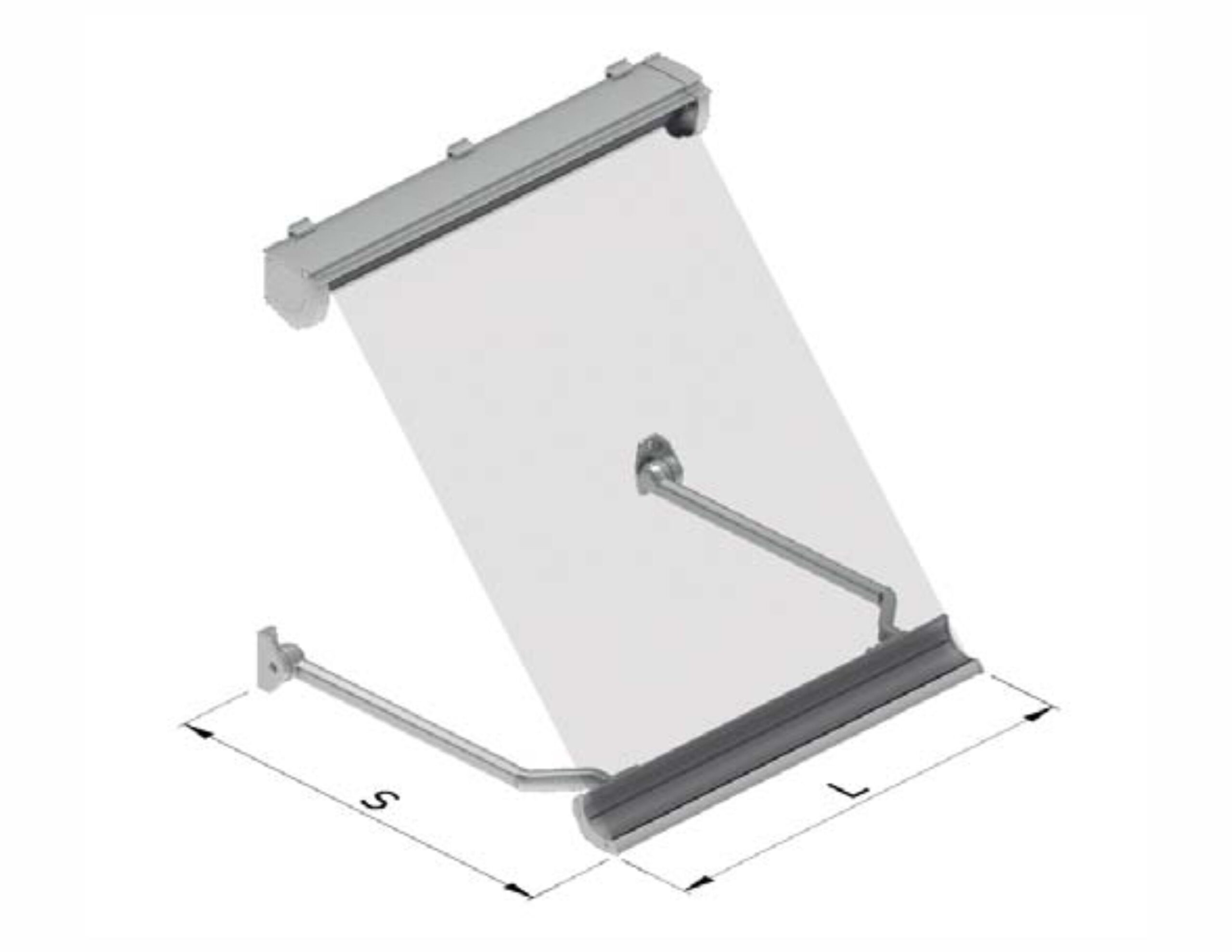

Important for cassette version:
-
Maximum projection with normal drop: up to 1400 mm.
-
Maximum projection with double drop: up to 1200 mm.
-
For these projections, a 60 mm roller tube will be used to prevent fabric marking.
-
For larger projections, fabric marking or creases may occur. Please consult before manufacturing.
Wind resistance:
-
CLASS 3 rating according to EN 13561 standard.
-
Excellent performance in demanding wind conditions.
