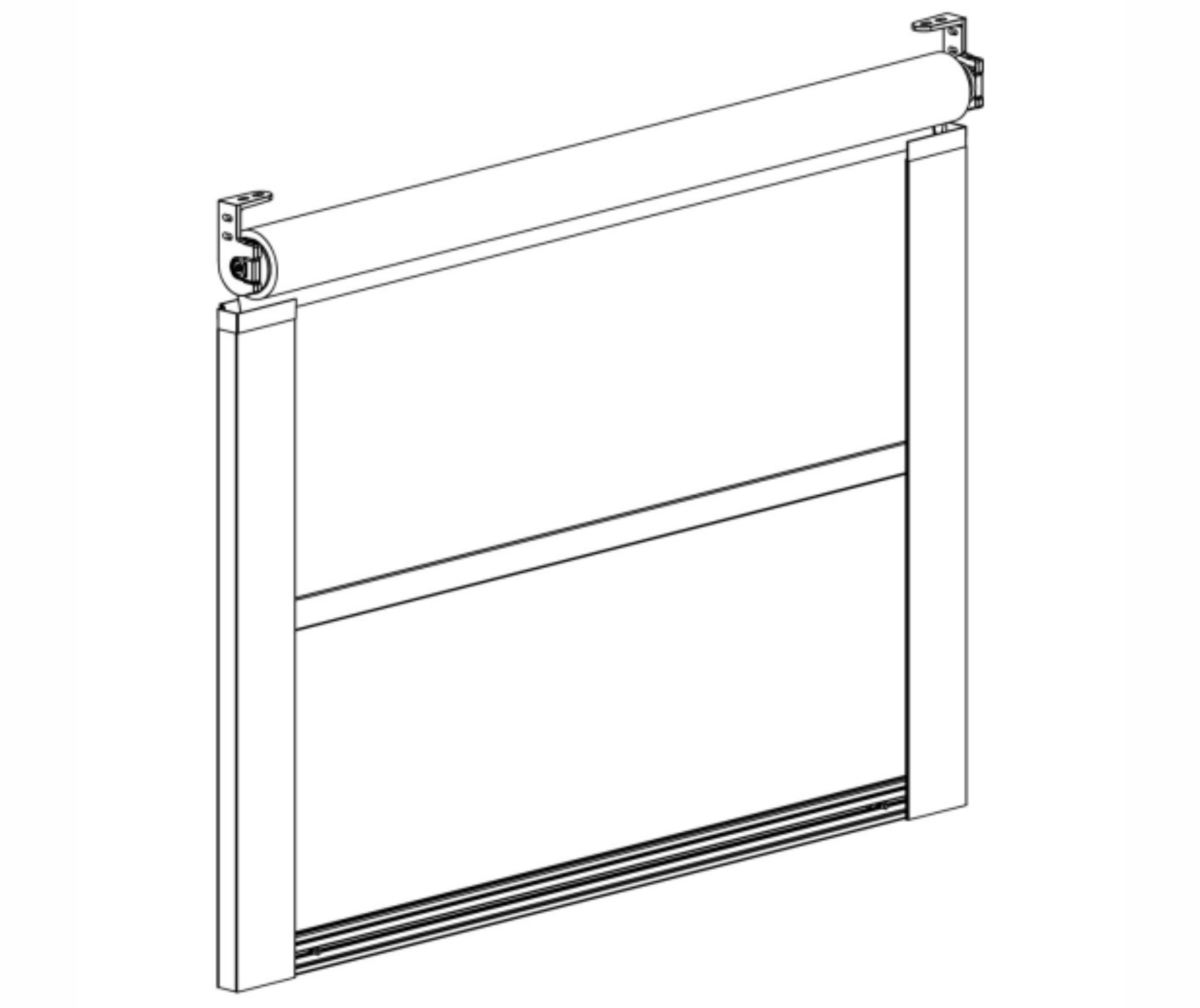

VERTICAL WITH MAO GUIDES

KEY FEATURES

• System with aluminum guides.

• Designed as a windbreak for pergolas.

• Option for fabrication with transparent window.

• Safety locks included in the bottom profile for enhanced fixation.

• No valance (can be included upon request, invoiced separately).

Installation types:

• Standard bracket:
  Allows front, ceiling, and between-wall installation.

• 40 mm bracket (optional, invoiced separately):
  Allows ceiling and between-wall installation.

• Compatible with retractable cassette (optional, must be specified in the order).

Measurements and configuration:

• Drop: Corresponds to the total height covered by the system.

• Reinforcement profile (optional):
  Recommended for sizes over 4000 mm width or 2000 mm projection.
  Helps prevent fabric displacement outside the guides in windy conditions.

• Custom-cut guides:
  Delivered ready to facilitate on-site installation.

Wind resistance:

• CLASS 2 rating according to EN 13561 standard.

• Ideal for protecting outdoor spaces in moderate wind conditions.

BOX OPTION

The Vertical Awning with Mao Guides offers the possibility to incorporate a box, ideal for enhanced protection of the fabric when retracted. This option adds functionality without compromising aesthetics.

• The awning with box should only be installed up to 2500 mm projection when using sewn acrylic fabric, due to roll-up capacity limitations.
• If welded fabric is used, the maximum possible projection must be consulted.
• The machine projection will always be lower.
• In box versions, only one reinforcement profile can be incorporated, which will be supplied with included side caps.

Special configurations

When the use of two reinforcement profiles is required, the system will be manufactured with a 78 mm shaft.
This configuration is especially recommended for:

• Transparent windows of 1350 mm.

• Acrylic fabric, as it prevents profile overlapping.

For other combinations of sizes and materials, correct rolling and the absence of overlaps cannot be guaranteed.
In these cases, prior consultation is recommended, and the use of 40 mm supports is advised for greater stability and compatibility.

CAUTION:
TRANSPARENT PVC and TRANSPARENT PVC WITH MESH materials do not have an internal weave, meaning they can experience significant contraction or expansion depending on ambient temperature.

• Their use is recommended only as part of an integrated window in the awning.
• Preferably, they should be combined with acrylic fabric.
• Even so, the use of these materials may cause wrinkles, visual defects, and rolling issues in the system.
