silice

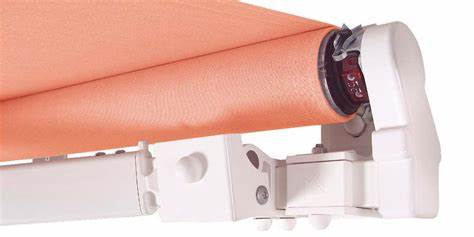

The Silice model is a monoblock articulated arm awning, designed for demanding installations that require strength and functionality. Mounted on a 40×40 mm square bar made of galvanized and lacquered steel, it provides excellent structural stability, while the strap arms and extruded aluminum brackets ensure durability and smooth operation.
Main features:
-
Modular configuration: allows profiles to be joined to extend the width, adapting to large surfaces.
-
Maximum recommended dimensions:
-
Width: up to 6,000 mm
-
Projection: up to 4,000 mm
-
-
From 6,000 mm width, the awning is manufactured exclusively with acrylic fabric.
-
Reinforced arms included for awnings with 3,500 mm projection or more, ensuring performance and stability.
-
For widths over 7,000 mm, the awning is delivered disassembled, along with all necessary components (profiles, tube, union parts).
-
For fabric widths over 7,000 mm, structural reinforcements are added to reduce wear on the compensator brackets (already included).
Roller tube system:
-
Uses Ø80 mm roller tube
Motorization:
⚠️ Important:
-
Awnings with three or four arms are always delivered motorized.
-
Motor price must be added to the base price shown in the tables.
-
Manual operation is not available in these configurations.
